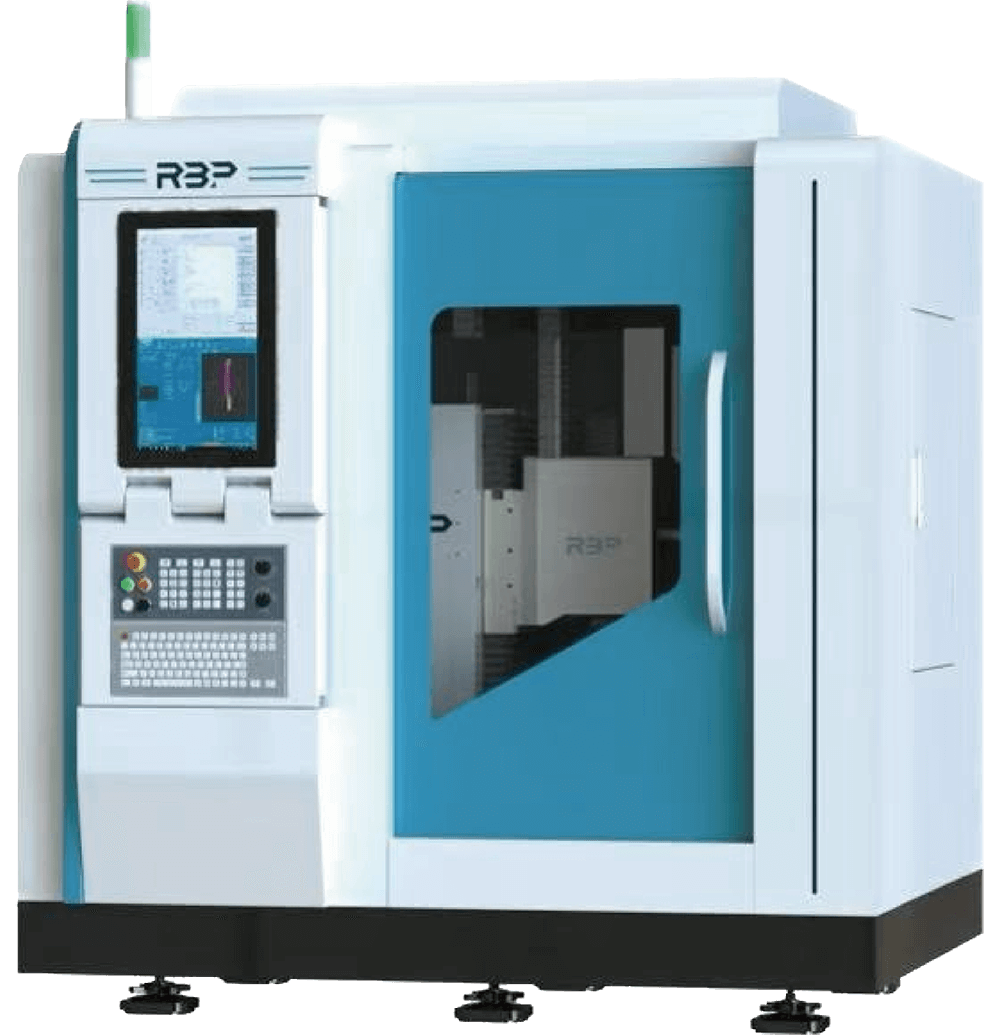

Five-Axis Laser Processing Machine for Cutting Tools LFS-P
X/Y/Z axes equipped with high-performance linear motors in a horizontal configuration
In-house motion-control software and laser CAM
Maximum linear-axis acceleration > 1 g
Roughing and finishing in a single clamping
High-strength granite bed for superior rigidity, high accuracy, and excellent machining stability.
Details
Application industry:
Specifically designed for large-scale ultra-hard tool machining such as automotive cutting tools. Horizontal structure design enables rough and finish cutting in a single setup.
Laser technology:
Milling with a Two-Flute PCD End Mill
Milling with a Four-Flute PCD End Mill
Trepanning with a Four-Flute PCD Trepanning Tool
Boring with a Four-Flute PCD Step Boring Tool
| Types | Parameters |
|---|---|
| Motion Control | X/Y/Z positioning accuracy: ±2 μm; A/C rotary-axis accuracy: ±2 arcsec. |
| CAM CAM Software | Toolpaths can be freely mapped between machine-axis motions and galvo (scanner) motions for maximum process flexibility. |
| Machining Progress | Contour accuracy: ±5 μm |
| Cutting Edge Quality | At 300× magnification: edge chipping < 2 μm; edge hone (passivation) < 3 μm |
